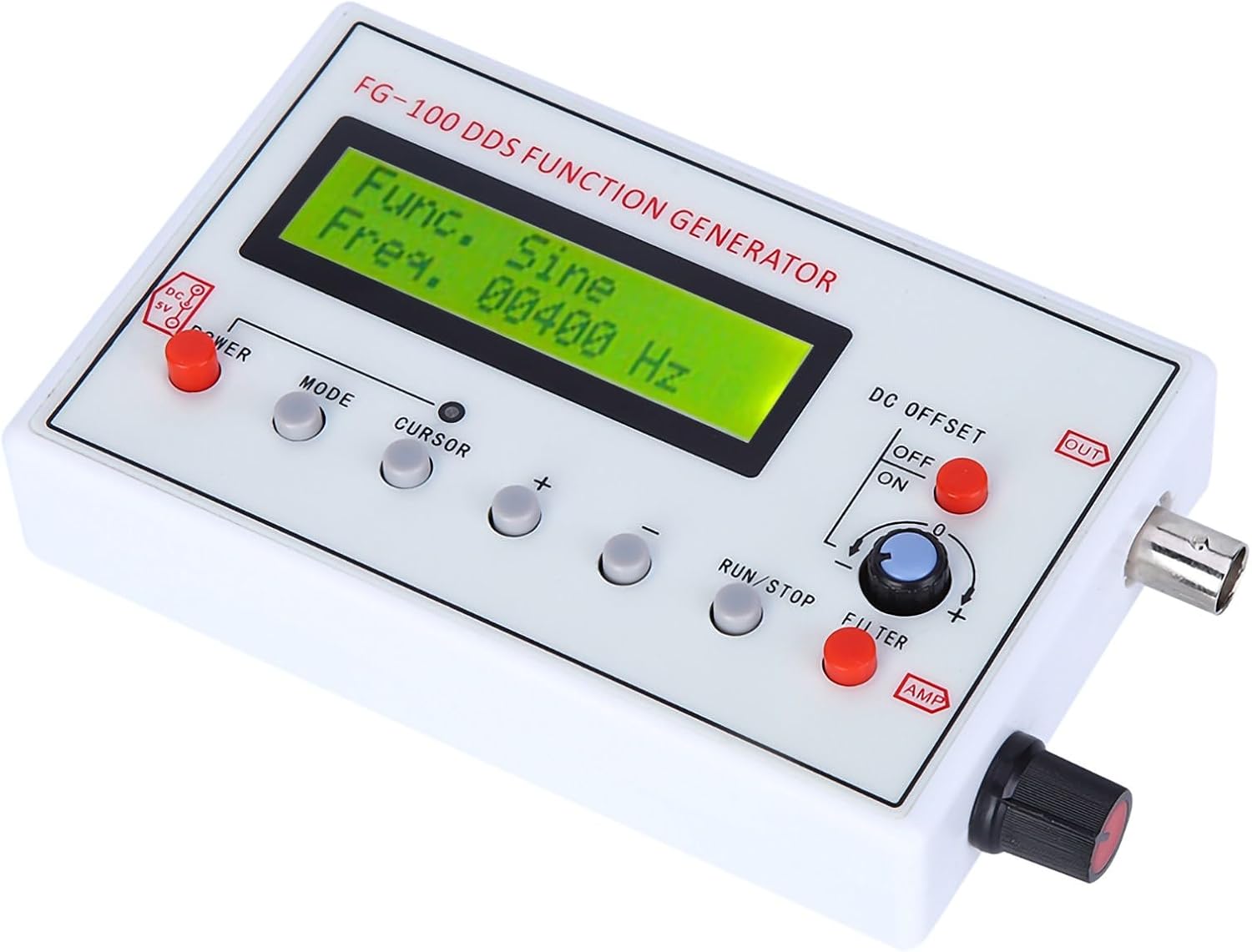

Eujgoov DDS Function Generator 1Hz-500kHz Frequency Generator with Sine Wave Multi Waveform Output for Electronic Testing

Specification:Item Type: Function Generator Material: ABSFrequency Range: Sine 1Hz~500kHz (Magnitude is flat up to 200kHz, 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you don’t care the phase noise and distortion, it can output full frequency range. Resolution: 1Hz Output Waveforms: Sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave.Sinewave Distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz) Output Amplitude: Maximum ±10V(P-P).Output Impedance: 50 ohm DC Offset: Maximum ±10V, can be disabled Internal Filter: For sinewave or pulse, can be turn on/off Power Supply: DC3.5-10V. DC 5V adaptor or 3.7V Lithium battery is recommended.Weight: Approx.172g/6.1ozPackage List:1 x Function Generator 1 x USB Cable1 x Instruction ManualNote:1. Please allow 1‑2cm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

• : Due to the and stable frequency of the DDS, it is also very suitable for the oscilloscope' time calibration factor.
• SquareWave： The squarewave output is also suitable for oscilloscope attenuators and probe pulse adjustment.
• Main Output Waveform： The main output waveform are sine and square‑wave, triangular wave, sawtooth wave.
• Filter :Have a filter (can be turn on/off ) to suit the output of sine and pulse wave.
• Easy to Carry: Small size, multiple functions, simple operation, easy to carry.Made of material, and practical to use.
